When posting your HW100BP to us for servicing, upgrade or repair, you don't need to send the scope, magazine, moderator or stock. However, when you remove the stock, you will notice that the plastic trigger blade becomes quite exposed as a weak point when wrapping/packaging the gun - if not packaged properly, this can snap during transit.
The trigger blade is attached to the gun by just one small screw - if you can, using a 2.5mm hex allen key, you can remove the trigger blade and pop it and the screw into a bag or envelope inside the packaging with the gun.
Instructions below...

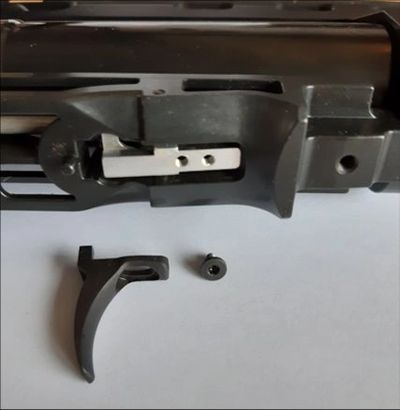

Using a 2.5mm hex allen key, unscrew the small screw from the trigger. Make a note of which hole the screw has come out of (there are two holes on the silver trigger blade securing plate).

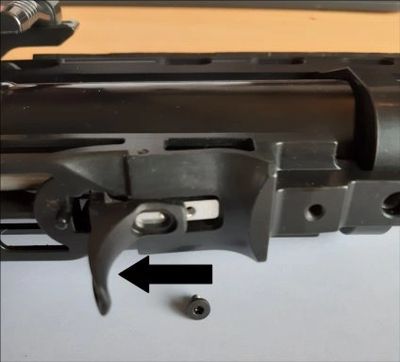

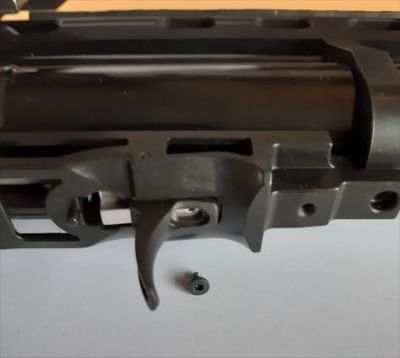

Once the screw is out, slide the trigger blade to the back of the silver securing plate.

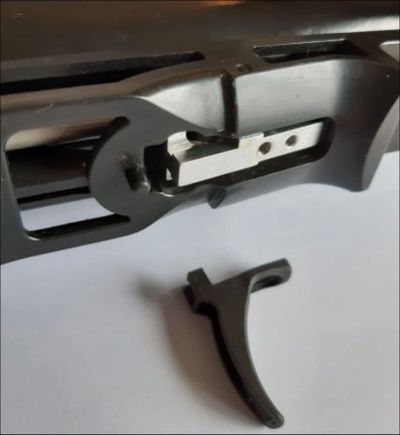

Once you have slid the trigger blade to the back of the silver securing plate, the trigger blade will come off.
Pop the trigger blade and the screw into an envelope and include it in the packaging with your gun & pellets. When you get your gun back, follow these instructions in reverse to re-install your trigger blade.
